LGSF Connectors

The Best Industry And Company Services

LGSF Connectors

Each connector uses 2.0 – 2.5 mm H.R. sheet steel and comes with the bright orange signature color of our brand with an anti-rust paint treatment for better life and longevity of your structure. Our connectors also have unique anti slip matt texture for better grip during assembly of the structure.

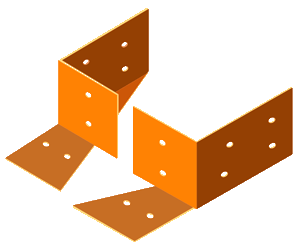

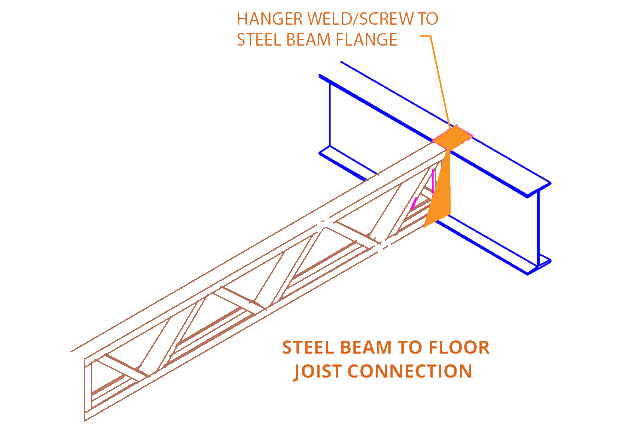

Joist Hanger

Material - 2.5mm (High Tensile Steel & Powder Coated)

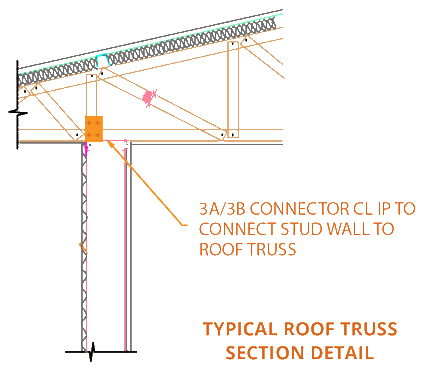

Connection Bracket - 3A/3B

Material - 2.5mm (High Tensile Steel & Powder Coated)

Lintel Plate

Material - 2.5mm (High Tensile Steel & Powder Coated)

50x50x2.5 Clip Angle

Material - 2.5mm (High Tensile Steel & Powder Coated)

Connection Bracket - 3D

Material - 2.0mm (High Tensile Steel & Powder Coated)

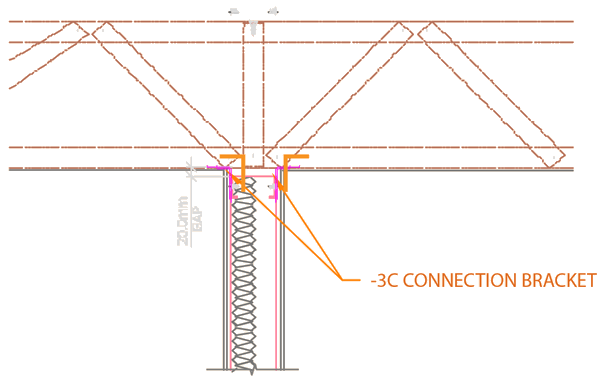

Connection Bracket - 3C

Material - 2.0mm (High Tensile Steel & Powder Coated)

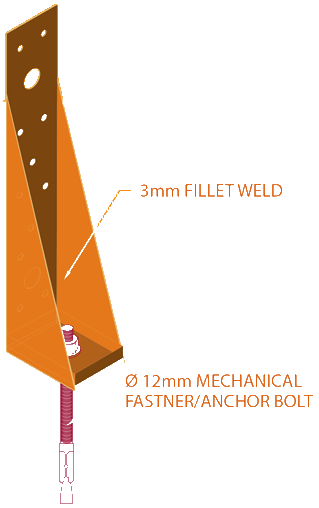

Hold Down Bracket

Material - 2.0mm (High Tensile Steel & Powder Coated)

Anchorage Bracket

Material - 2.5mm (High Tensile Steel & Powder Coated)

The Best Industry And Company Services

LGSF Screws

Screw Points

Drill Point DP 12 Gauge to 16 Gauge

Winged Drill Paint WDP Hard Board to Steel Wings break at Steel point

Sharp Point 5P For < 0.75rnm

Tri Lobular For Transportable With stand Vibration

Screw Heads

Wafer Head For Wall Panels Sits into Dimple

Hex Head High Torque, Panel to Panel Rubber Seal for Waterproofing

Counter Sunk Head (CSK) Sinks into Cladding Boards Smooth Finish after Coating

Screw Drive

Most Popular Low Torque

Hex Drive For Panel to Panel High Torque

Square Drive Stik Fits Low Torque For One Hand Drive

X Drive Stable High Torque No CAM-OUT Issues

Framing Screw Flat Head 10.9-16×16

Panel Joiner Screw 109-18×19 Hex Head

F100 Fix 109-18×45

Gypsum Screw

SS x 14 x 55mm Hex Head 205 Self Drilling Screw

Anchor Bolts 12 x 150mm/216mm/220mm/450mm
