Building Facades

Building Facades

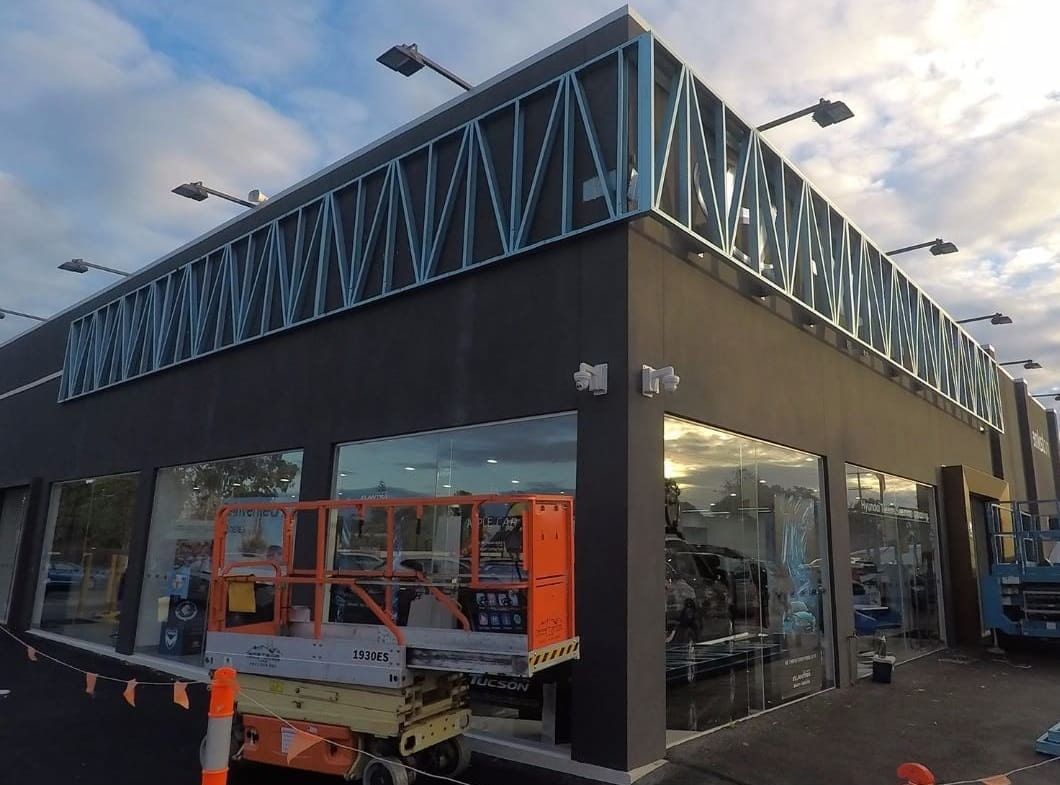

Many multi-storied commercial and residential projects are clad using facade panels. These panels built from light steel framing allows the rapid installation of the building envelope, in many cases, including not only the cladding but also the windows. The factory-assembled panels are trucked to the site ready to be installed. Reducing the need for site work and scaffolding saving costs and time. The panels are lifted into position and secured to the building, once in place, the internal building fit-out can be completed.

How it works

Once installed on the top and bottom tracks, the panels can be assembled and clad ready for installation.
The slot and hole configuration allows the panels to be aligned side to side and in and out, keeping the panels aligned up the building as the special mounting bracket connects the top of one panel to the bottom of the next.
The slotted hole in the bottom track sets the side to side position, while the hole in the top track sets the in and out position.
